MicroBeast Unleashed: Elevate Your Heli Game! Ultra-Precision Flight Control System!
Get ready to ditch the drab and embrace the fab This ain't just a thing its a whole vibe a statement a conversation starter Think bold think you think *this* Your next obsession is here a treasure hunt wrapped in awesome It's got that "wow" factor that "I need this" feel And trust us you do So go ahead Treat yourself You deserve a little something that screams YOU You'll be the envy of everyone you know Let's get it

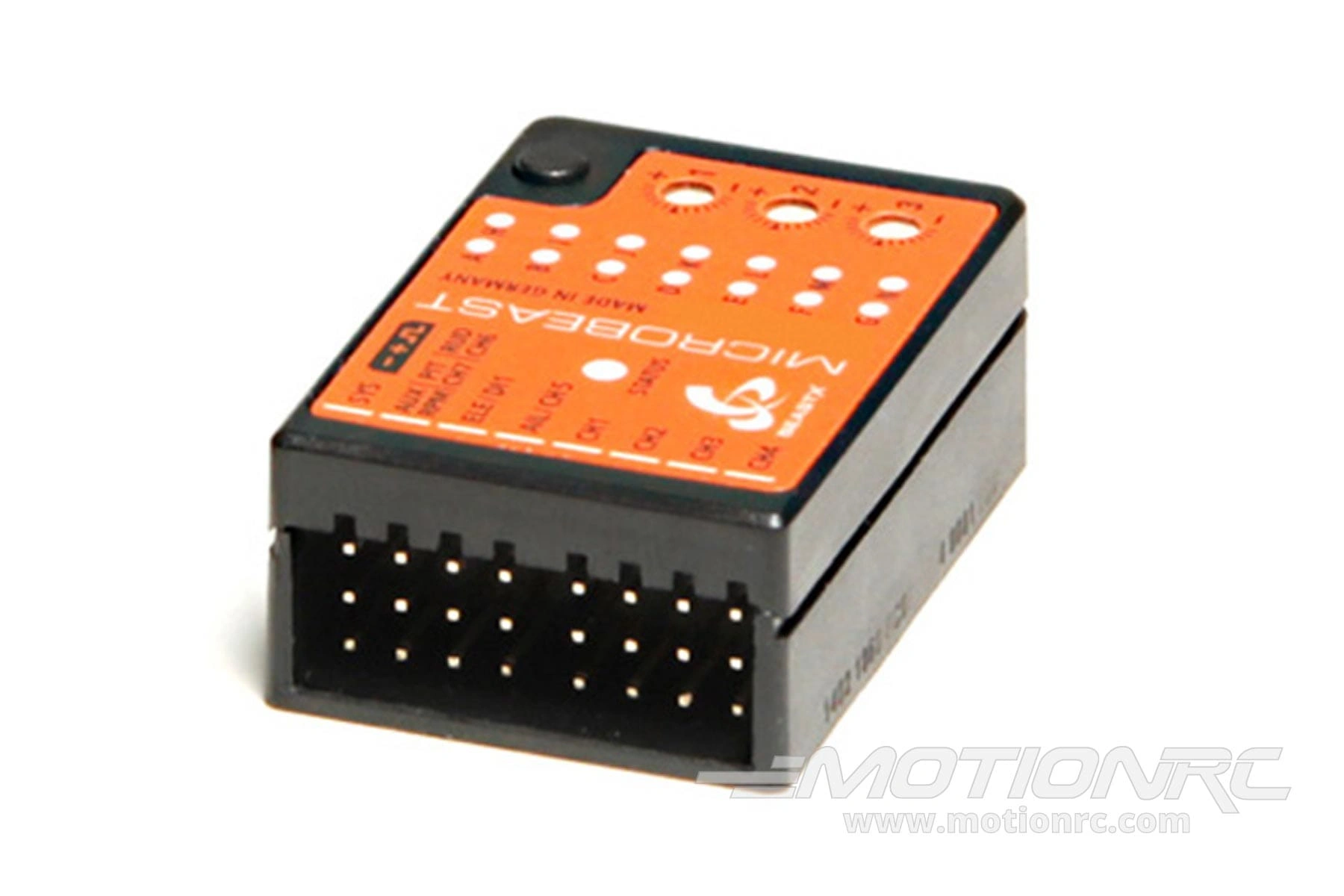

MicroBeast Ultra Flybarless System from BeastX - BXM76542
MicroBeast Ultra is a 3-axis control system that is the result of over ten years of research and development for flybarless RC model helicopters. It combines all the properties of the previously released BeastX systems and is ready for the future with a modern ARM Cortex MPU, providing even more computing power and storage capacity. MEMS sensors of the latest generation measure the aircrafts rotational movement with unprecedented precision and transmit the data digitally and in real time to the system. The housing made of plastic composite material keeps the weight of MicroBeast Ultra sensationally low.
The sophisticated setup can quickly be done everywhere and no expensive programming box or computer is needed. So many settings can also be changed simply and easily at the flying field. Further options are available with the optional USB2SYS interface and the StudioX software package. MicroBeast Ultra can be kept up to date by using the update functionality and advanced pilot can thus customize the unit specifically to their needs.
The included firmware version is 5.1 Basic. If required, the device can be upgraded (subject to a charge) to include additional useful functions. A telemetry connection is available in which the MicroBeast Ultra acts as an interface between the various sensor systems and remote control standards. AttitudeControl offers additional position stabilization and rescue of the model for flight and beginner training. The bank switching allows different parameter sets.
Features:
- Servo outputs:
- 3 swash plate servos
- Maximum adjustable servo update rate: 200Hz
- Swash plate mixing types: mCCPM, 90°, 120°, 135°, 140°; as well es freely configurable mixer with StudioX, i.e. for swash phasing
- 1 rudder servo
- Supports mostly all types of servos with 1520µs, 960µs or 760µs
- Maximum adjustable servo update rate: 560Hz
- When using a SingleLine receiver additionally:
- throttle output, auxiliary output for landing gear, position lights or else
- Signal inputs:
- Standard receiver with single servo output channels
- SingleLine receivers: Spektrum DSM2/DSMX remote satellite*, JR RJ01 DMSS remote satellite*, Futaba S.Bus, SRXL (JR XBUS, Spektrum SRXL, SUMD, M-Link, BEASTX SRXL, JETI UDI), SPPM
- Sensor board (i. e. for connecting an rpm sensor for internal electric or nitro RPM governor function).
Includes:
- BeastX MicroBeast Ultra Flybarless System

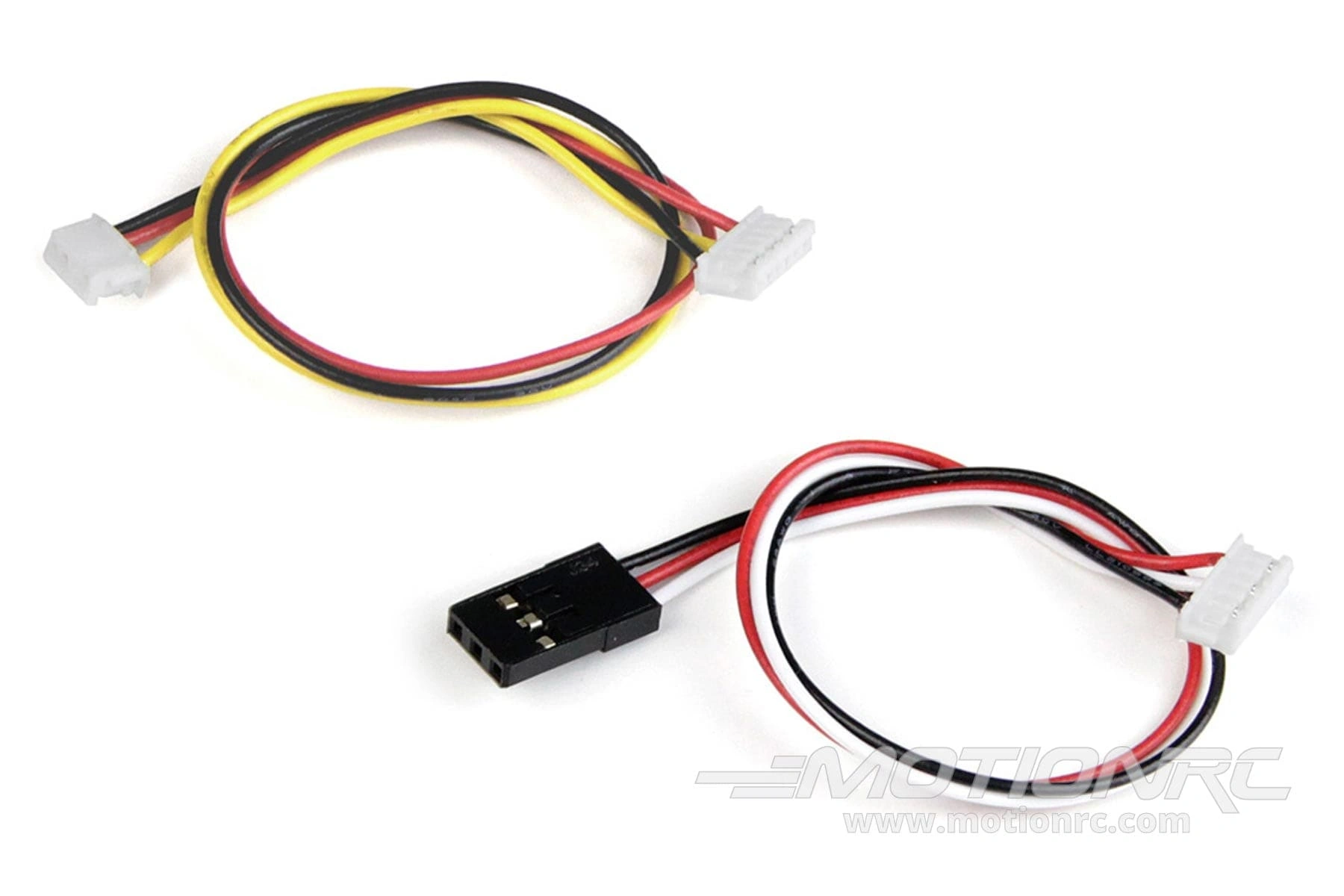

- Receiver connection cables
- SRXL2 Microbeast adapter cable
- Telemetry Microbeast adapter cable
- 3M adhesive pad
- Adjustment tool
- Operating instructions
- Decal sheet
Specifications:
- Input voltage: 3,5 V - 8,5 V DC (Operation with 2 cell LiPo possible)
- Processor: 32 Bit ARM
- Sensor: 6-Axis MEMS (Gyro + Accelerometer)
- Dimensions: 36 x 25 x 14 mm
- Weight (w/o wiring): ca. 11g
